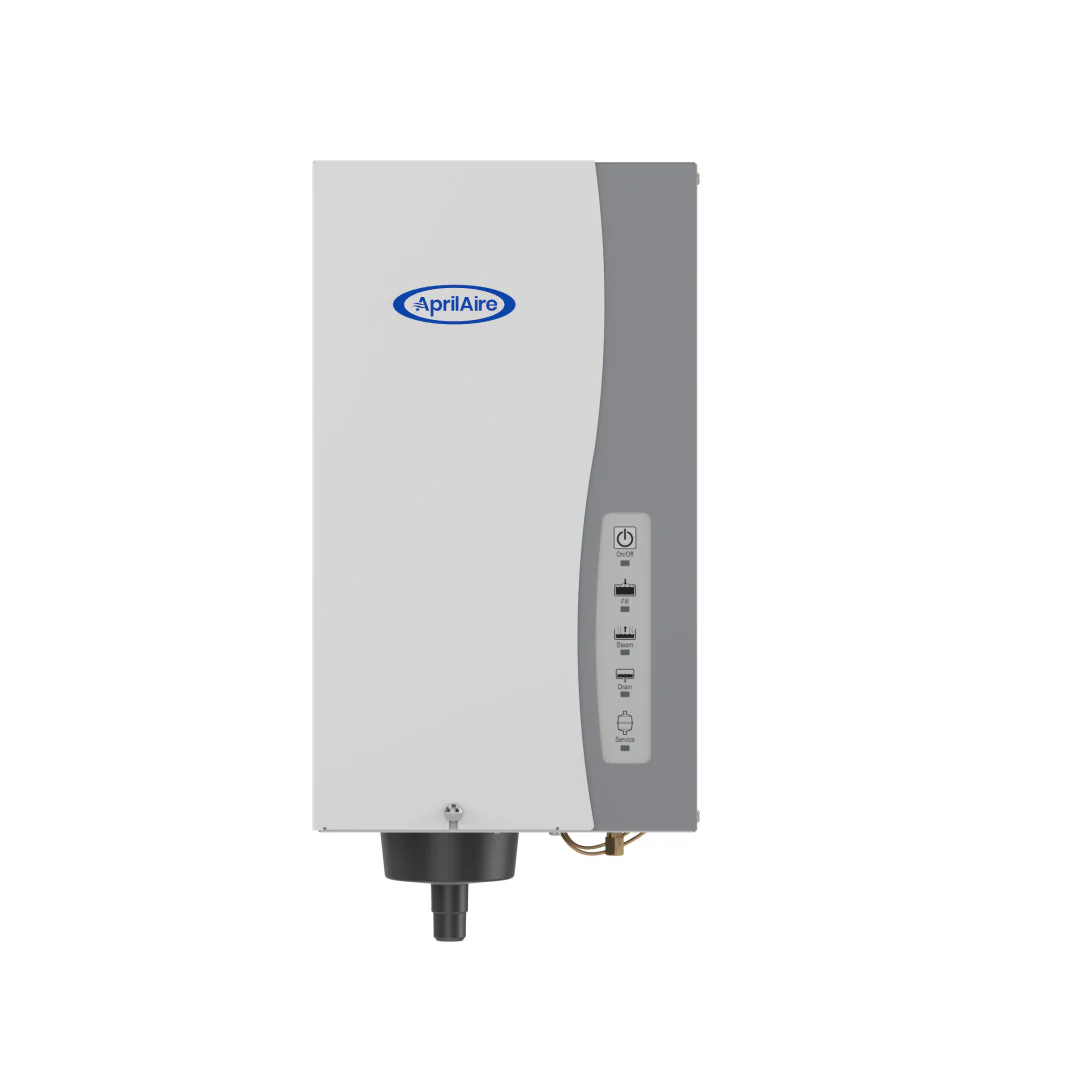

Aprilaire 800 Humidifier Toronto — Whole-Home Steam for Big Comfort Gains
Winter air in Toronto can be brutally dry. The Aprilaire 800 Steam Humidifier adds clean moisture directly into your ductwork so every room benefits—protecting people, hardwood floors, cabinetry, musical instruments, and finishes. Its electrode-steam design automatically adapts to your home’s water and delivers serious output for larger or tighter homes.
Why GTA homeowners choose the Aprilaire 800
- High capacity: 11.5–34.6 GPD depending on voltage and amp setting, sized for big homes and tough cold snaps.

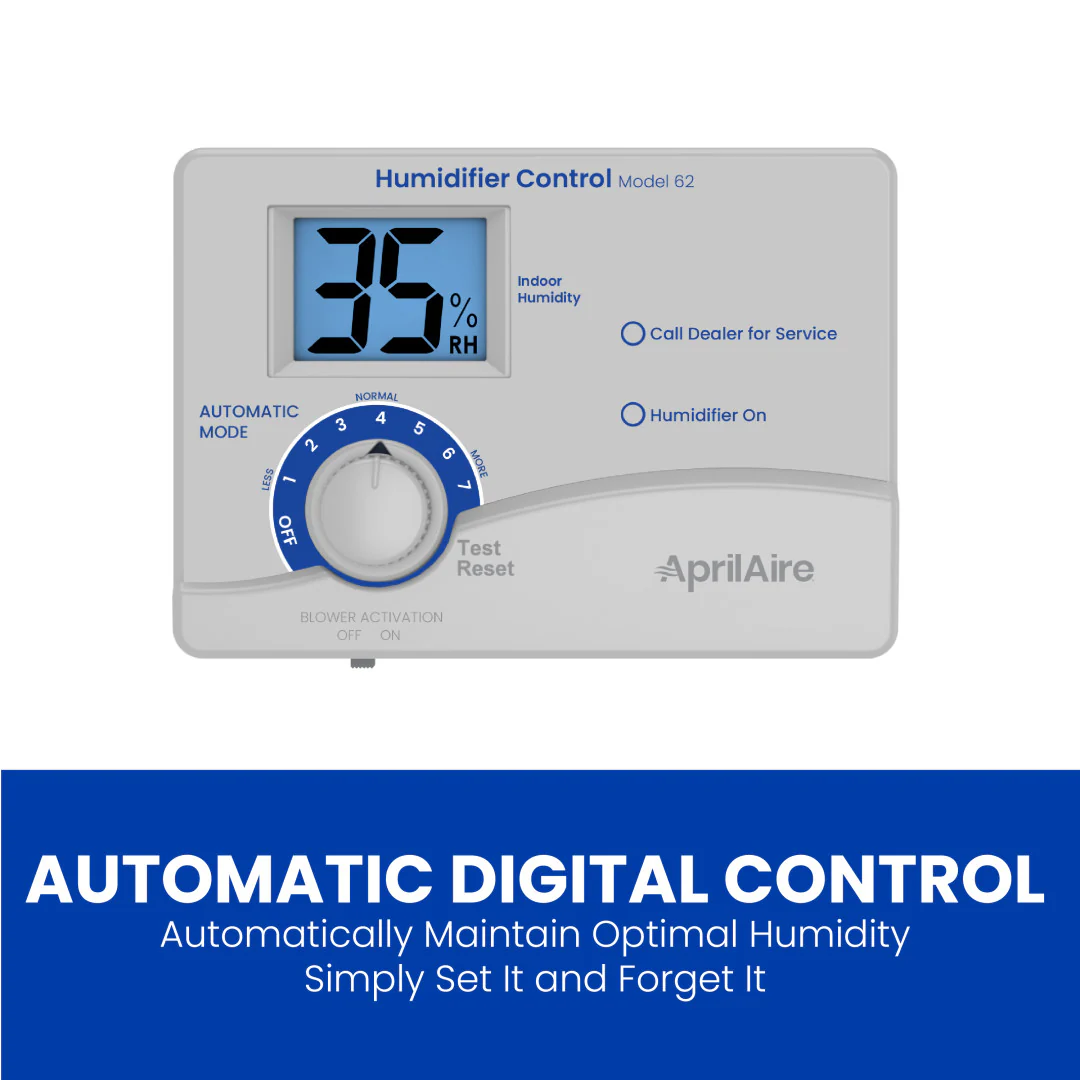

- Automatic control: Model 62 digital humidistat + outdoor sensor adjusts RH based on outdoor temperature; can activate your HVAC blower for sampling/maintaining setpoint.
- Whole-home coverage: duct-mounted dispersion tube spreads steam evenly across the airstream for room-to-room comfort.
- Water-friendly: Purified water is not required—electrode technology needs natural minerals for conductivity (no special filtration needed).
- Low seasonal service: replace the steam canister (Model 80 or 80LC) about once per heating season; periodic drain/hoses check.
How it works
The 800 boils water inside a sealed canister using two electrodes. Steam flows through a high-temp hose into a dispersion tube in your supply duct. Integrated fill and drain valves manage water quality and temper drain water. The included Model 62 Automatic Digital Control monitors indoor RH (and outdoor temperature) and runs the humidifier only when needed.

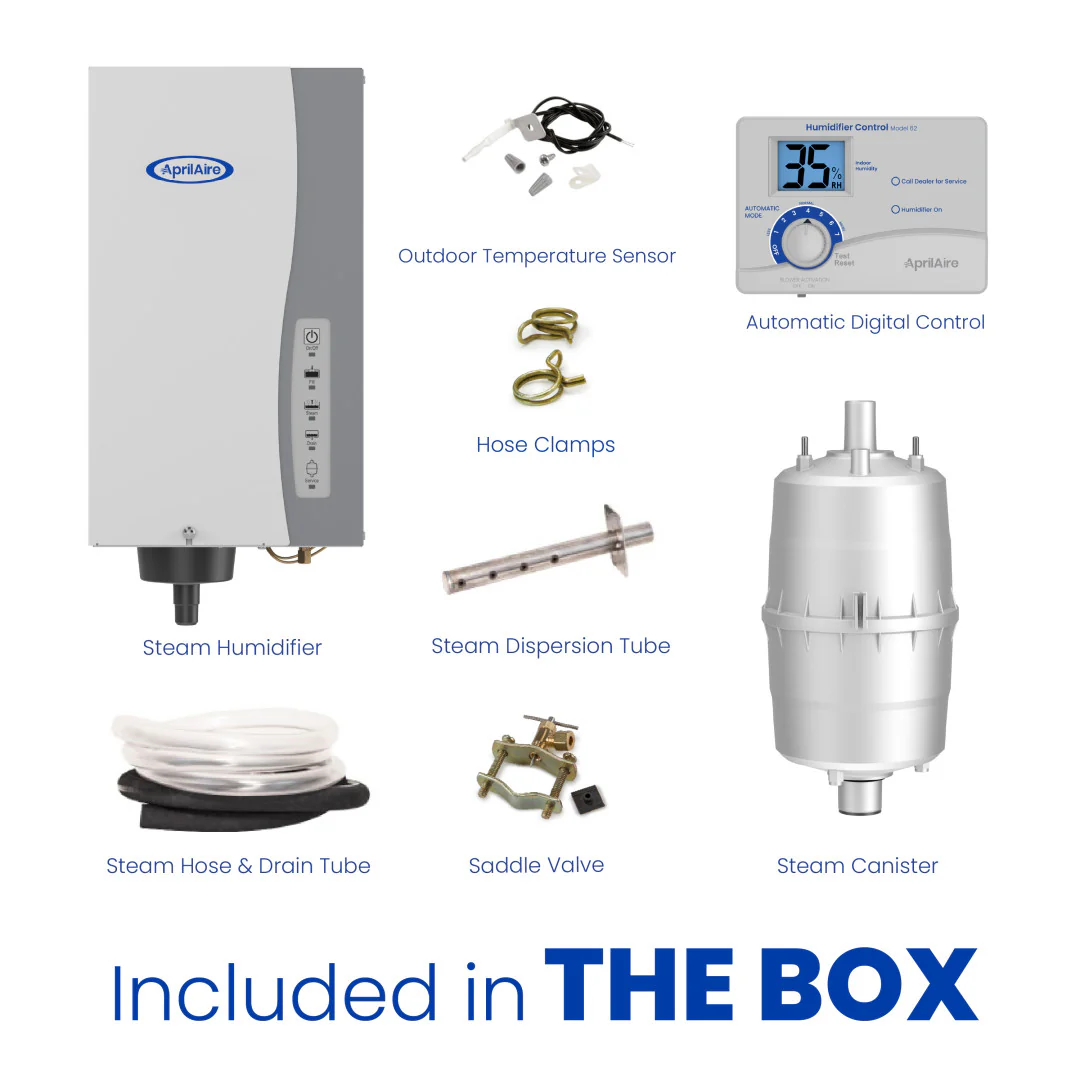

What’s included
- Aprilaire Model 800 Steam Humidifier cabinet
- Model 62 digital automatic humidistat + outdoor temperature sensor
- Model 80 steam canister (electrode)
- Steam dispersion tube, 6-ft steam hose, clamps
- Drain tubing (7/8″ x 10′) and saddle valve
- Installation instructions
Specifications
| Type | Electrode steam, whole-home (duct dispersion) |
| Output | 11.5–34.6 GPD (see capacity table below) |
| Electrical | 120/208/240 VAC; dip-switch selectable 11.5 A or 16.0 A |
| Control | Model 62 automatic digital humidistat + ODT; blower activation supported |
| Water | Operates on typical municipal water; purified water not required |
| Canisters | Model 80 (most installs); Model 80LC for low-conductivity water or 120V installs |
| Weight | Ship ≈ 28 lb; operating ≈ 23 lb (rises as minerals accumulate) |
| Install | Duct dispersion; follow absorption distance guidelines |
Capacity & suggested home size (from installation guide)
| Amps | Voltage | Max Output (GPD) | Tight Home | Average | Loose |
|---|---|---|---|---|---|
| 11.5 A | 120 V | 11.5 | 2,500 sq ft | 1,500 sq ft | 1,000 sq ft |
| 11.5 A | 208 V | 20.5 | 4,500 sq ft | 2,500 sq ft | 1,500 sq ft |
| 11.5 A | 240 V | 23.3 | — | — | — |
| 16.0 A | 120 V | 16.0 | 3,500 sq ft | 2,000 sq ft | 1,500 sq ft |
| 16.0 A | 208 V | 30.0 | 6,000 sq ft | 4,000 sq ft | 2,500 sq ft |
| 16.0 A | 240 V | 34.6 | — | — | — |
Guide assumes 8′ ceilings; multi-furnace homes typically need one humidifier per system.
Professional Humidifier installation Toronto & GTA
- Design & sizing: voltage/amp selection, dispersion tube placement, absorption distance, drain routing.
- Code-compliant wiring & plumbing with clean, sealed duct cut-ins.
- Control setup: Model 62 configuration, blower activation, and outdoor sensor calibration.
- Commissioning: fill/steam/drain tests, leak checks, homeowner walk-through.
Maintenance
- Replace steam canister annually (or when “Service” light indicates). Use Model 80 (standard) or 80LC for low-conductivity water.
- Inspect steam hose, dispersion tube, and drain line each season; confirm continuous downward slope.
- Clean the in-line strainer and verify fill/drain operation during preseason check.
Is Aprilaire 800 right for me?
Choose the 800 if you have a larger home, short furnace run times, humidity-sensitive finishes (hardwood, millwork), or need steady output regardless of supply-air temperature. If you don’t have ducts in the target area, ask about the fan-pack option (Model 865 system) which disperses steam directly into a space.
Get a fast quote
We install Aprilaire 800 humidifiers across Toronto, Markham, Mississauga, Vaughan, Richmond Hill, North York, Scarborough, Etobicoke, Brampton & Pickering. Call 416-335-0881 or request a site visit today.
